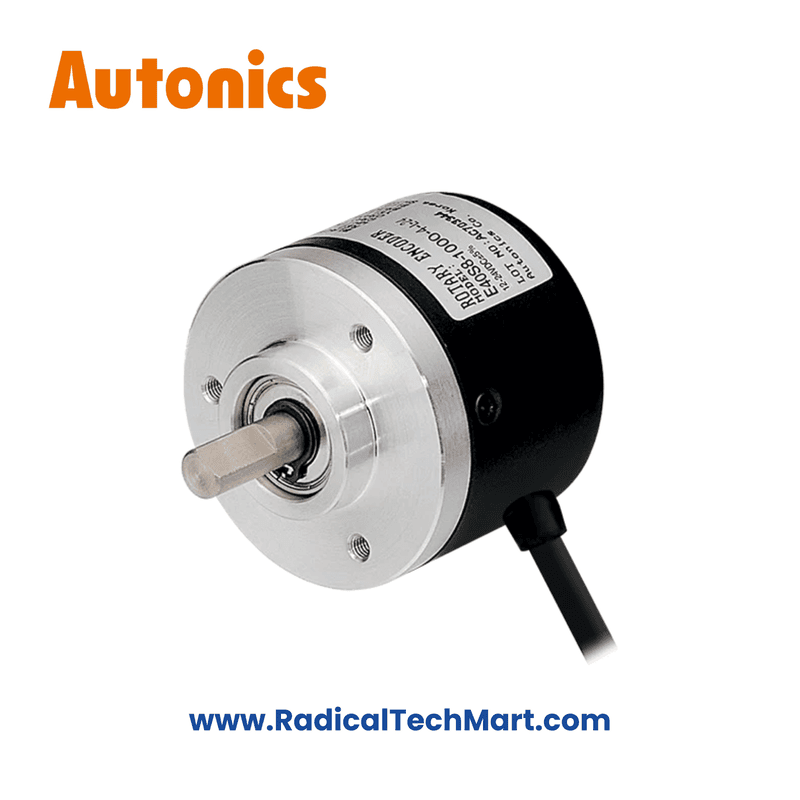

E40S6 Series Autonics Encoder
Non-returnable
₹5,300.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model No. | E40S6 |
| Series | E40S6 Series Shaft type |
| Response time | Max. 1㎲ |
| Shaft Outer Diameter | 6mm |
| Max. Response Frequency | 300kHz |
| Max. Allowable Revolution | 5000rpm |
| Starting Torque | Shaft type : Max. 40gf·cm(0.004N·m), Hole type : Max. 50gf·cm(0.005N·m) |
| Resolution (P/R)※1 | *1, *2 ,*5, 10, *12, 15, 20, 23, 25, 30, 35, 40, 45, 50, 60, 75, 100, 120, 150, 192, 200, 240, 250, 256, 300, 360, 400, 500, 512, 600, 800, 1000, 1024, 1200, 1500, 1800, 2000, 2048, 2500, 3000, 3600, 5000 |
| Output Phase | A, B, Z |
| Current consumption | Max. 80mA(disconnection of the load), Line driver output : Max. 50mA(disconnection of the load) |
| Power Supply | • 5VDC ±5%(Ripple P-P : Max. 5%) • 12-24VDC ±5%(Ripple P-P : Max. 5%) |
| Connection | Cable type, 250mm connector cable type |
| Protection Structure | IP50(IEC standard) ※Option type is available for IP64 (IEC standard) |
| Ambient Temperature | -10 to 70℃, storage : -25 to 85℃ |
| Ambient Humidity | 35 to 85%RH, storage : 35 to 90%RH |
| Insulation Resistance | Min. 100MΩ(at 500VDC megger between all terminals and case) |
| Dielectric Strength | 750VAC 50/60Hz for 1 minute(Between all terminals and case) |
| Shaft Loading | Radial : Max. 2kgf, Thrust : Max. 1kgf |
| Vibration | 1.5mm amplitude or 300m/s2 at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours |
| Shock | Approx. Max. 50G |
| Weight | Approx. 160g |
